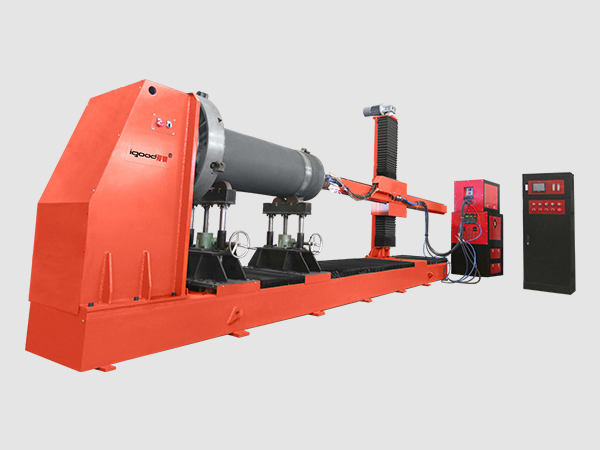

- Cold welding machine
- Henan Igood is a high-tech enterprises specialized in designing and manufacturing cold welding machine, variable current & voltage cold welding machine .
Brief introduction:
| Input voltage | 380V±10%/50HZ±1 | input power | 15KVA |
| piece length | 3200mm | work piece diameter | 800mm |
| rated load | 3000kg | welding speed | 0~500mm/min |
| overall dimension | 6000*1000*2800 | weight | 5000kg |
Main configuration:
Pulse power supply
Water-cooled torch
Water circulating cooling systems
Video monitoring system.
High precision servo motor and numerical control system
Application:

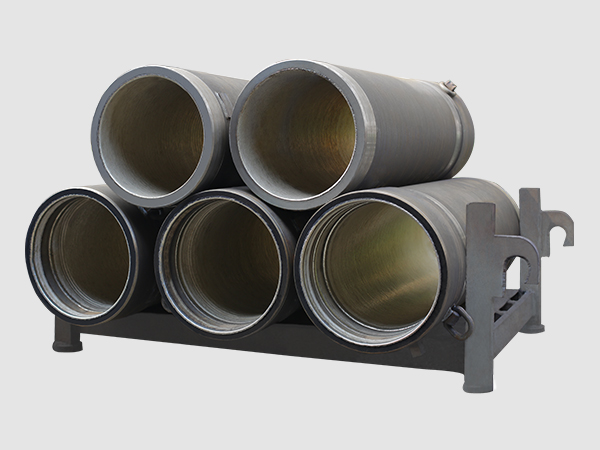

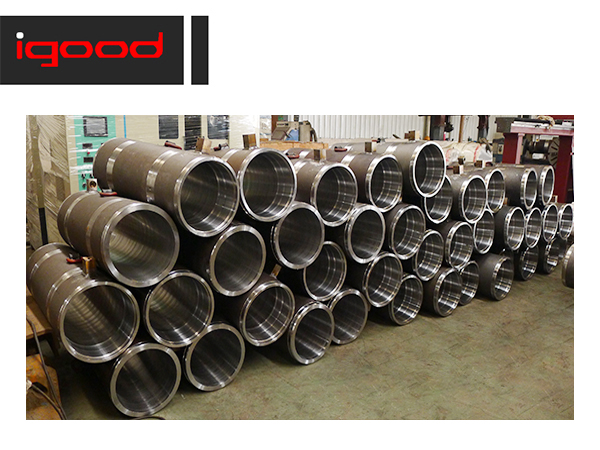

Wear and corrosion protection, such as:
The inner wall of the cylinder
Pipe
Oil pipeline
Features and benefits:
1.Minimal heat affected zone
2.Low dilution
3.Suitable for wide range of welding materials.
4.Basically without weld spatter
5. Automation more advanced
